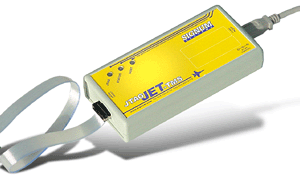

JTAGjet-C3x is a small, palm-sized In-Circuit Debug Probe for the TMS320C3x family of DSPs from Texas Instruments. It is equipped with a USB 2.0 port that runs in the High-Speed mode at 480 Mb/sec. This emulator supports the following C3x DSP devices:
| FAMILY | SERIES | MCU |
| TMS320C30 | Floating-Point | 32-bit |
| TMS320C31 | Floating-Point | 32-bit |
| TMS320C32 | Floating-Point | 32-bit |
Chameleon Debugger for C3x
JTAGjet-C3x comes with Signum’s own Chameleon Debugger for the TMS320C30/31/32 DSPs. The debugger is compatible with Code Composer 4.1 code generation tools and loads the generated COFF debug and object files directly.
MPSD Clock
JTAGjet-C3x supports the standard, Texas Instruments 12-pin MPSD debug header and is capable of supporting the MPSD clock at up to 28MHz.
Hardware Features
- Supports TI TMS320C30/31/32 devices
- USB 2.0 high-speed port (480 Mbps) provides faster downloads.
- Supports all on-chip breakpoints
- Powered by USB port – no external power adapters needed.
- LEDs provide status of target power, MPSD activity, PC host activity and emulator power.
Software Features
- Includes Chameleon Debugger C3x (does not integrate with Code Composer or Code Composer Studio)
- Supports TI Code Composer 4.1 code generation tools (C compiler & assembler COFF object & debug files)
- Graphically monitors all pins on the MPSD header.
- Windows 7 and Windows10 compatible
Auto-Sensing Voltage
JTAGjet-C3x comes with a 12-pin MPSD active adapter and supports targets from 3.3V to 5V.
